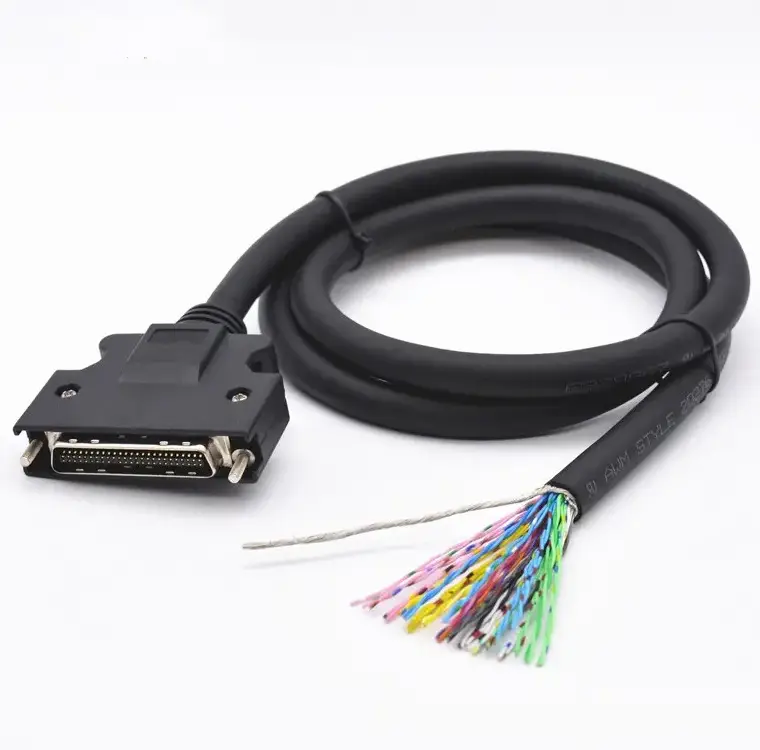

The SGM7 Series 50Pin Servo Encoder IO Cable for (YASKAWA) is part of the Servo Motor Cable range and is supplied in stock from our factory in Dongguan. Each assembly is built to drawing with the shield terminated to the connector shell, which is the detail that decides whether a differential link holds its margin.
Specifying the SGM7 Series 50Pin Servo Encoder IO Cable for
Every unit is inspected before dispatch and ships with a test report, so incoming inspection becomes a document check rather than a re-test. Material compliance is documented against RoHS and REACH.
Key features
- Shield terminated to the connector shell around the full circumference
- Double-shielded construction for stable differential signalling
- Custom lengths, pin assignments and hood types built to your drawing
- Strain relief designed to keep mechanical load out of the termination
- Test report with continuity, dielectric strength and insulation resistance results
- Flex-rated constructions available for drag-chain applications
Technical specifications
| Connector-1 | SCSI MDR-50P Male Connector |
|---|---|
| Connector-2 | OPEN |
| Wire SPEC | UL20276 28AWG*25P +AL + Braid PVC Jacket OD=8.6mm |
| Length | 0.5m, 1.0m, 2m, 3m, 5m, 8m, 10m （Customizable） |
| Color | Black （Customizable） |
| Electrical Characteristics | a) Current rating: 0.3A max |
| Application | SIEMENS Yaskawa Panasonic Servo Motor |
| Environmental standards | RoHS Compliant |
| Part number | SC50MM02-XXM |
| Category | Servo Motor Cable |
| Compliance | RoHS and REACH compliant materials |
Typical applications
Vision systems and camera links, servo drive and encoder runs, machine-tool control panels, test benches, and any installation where a shielded multi-conductor assembly has to survive continuous flexing or a hostile environment.
Ordering information
- Part number: SC50MM02-XXM
- Availability: supplied from stock or made to order against your schedule
- Sample service: samples dispatched within 24 hours for stocked items
- Trade terms: FOB, EXW, CIF and DDP all supported
- Customisation: alternative pin-outs, lengths and materials engineered to your drawing
Send the specification to King@KinKuo.com and our engineering team will confirm feasibility, lead time and pricing.
Quality assurance
KINKUO operates an ISO 9001:2015 certified quality management system. Cable stock is inspected on receipt for stranding, shield coverage and jacket concentricity; finished assemblies are tested for continuity, dielectric strength and insulation resistance, and high-speed types are verified with TDR impedance analysis. Materials are RoHS and REACH compliant.
