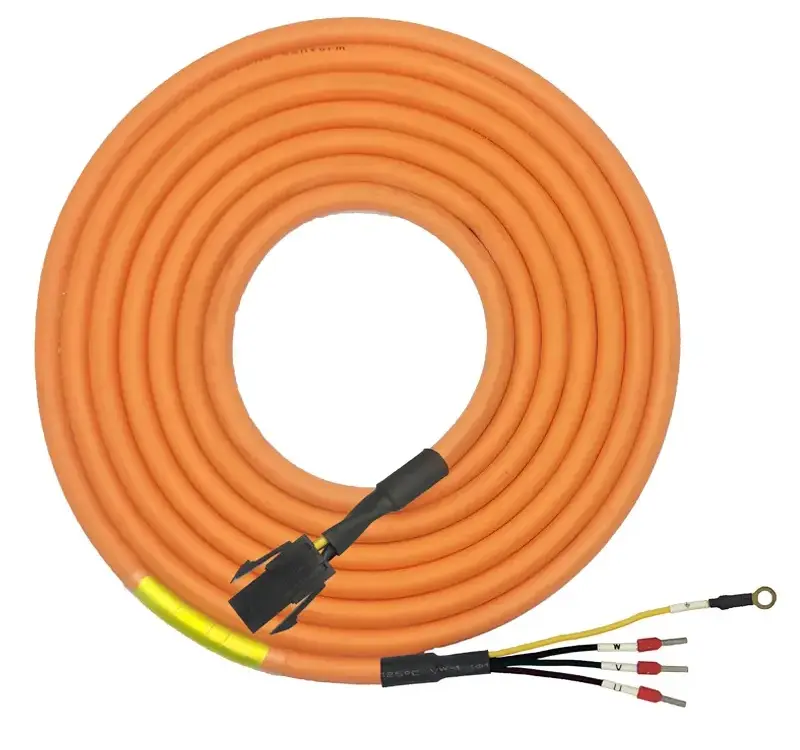

The V90 Servo Motor Cable for SIEMENS (6FX3002-5CK01-1XX0) is part of the Siemens V90 range and is supplied made to order from our factory in Dongguan. Power cable for the SINAMICS V90 platform, built with the conductor cross-section and screening needed to keep switching noise inside the cable. Available with or without brake conductors.
Flex life and routing for the V90 Servo Motor Cable for SIEMENS
Every unit is inspected before dispatch and ships with a test report, so incoming inspection becomes a document check rather than a re-test. Material compliance is documented against RoHS and REACH.
Key features
- Cross-referenced to 6FX3002-5CK01-1XX0
- Optional integrated brake pair
- Overall braided screen for EMC compliance
- Oil-resistant, drag-chain rated jacket
Technical specifications
| Compatibility | Siemens SINAMICS V90 |
|---|---|
| Cross reference | 6FX3002-5CK01-1XX0 |
| Shielding | Overall braid |
| Brake pair | Optional |
| Flex rating | Drag-chain suitable |
| Compliance | RoHS, REACH |
| Part number | 6FX3002-5CK01-1XX0 |
| Minimum order | 5 pcs |
| Compliance | RoHS and REACH compliant materials |
Typical applications
Siemens V90 motor power connections in machine tools and handling systems.
Ordering information
- Minimum order quantity: 5 pcs
- Availability: Made to order
- Lead time: 3–5 working days
- Sample service: samples for engineering validation are dispatched within 24 hours on stock items.
- Trade terms: FOB, EXW, CIF and DDP are all supported.
Custom configurations are available on request — alternative lengths, pin-outs, shielding arrangements and overmoulding can all be engineered to your drawing. Send the specification to King@KinKuo.com and our engineering team will confirm feasibility and pricing.
Quality assurance
KINKUO operates an ISO 9001:2015 certified quality system. Production runs through in-process inspection at every station, covering continuity, dielectric strength, insulation resistance and visual criteria. Finished servo motor cables are verified against the drawing before packing, and a test report accompanies every shipment.
Flex life and installation practice
Servo cables fail mechanically far more often than electrically. The conductor fractures where the bend is tightest, and the fault appears as an intermittent alarm long before it becomes a hard failure — which is why these problems are so often misdiagnosed as drive faults.
- Measure the actual bend radius your installation produces, not the intended one. Flex life falls non-linearly as radius reduces.
- Run cables in a single bend plane inside the carrier. Twisting shortens life substantially.
- Separate cables of different diameters so they do not beat against each other during travel.
- Secure the cable at both ends of the travel and let the loop move freely between them.
- Never pull a cable through a carrier by its connector.
Common questions
What flex life should I specify?
Tell us the bend radius, travel distance and cycle rate and we will recommend a construction with a stated qualified flex life. Our high-flex assemblies are rated to 10 million bending cycles.
Should the brake pair be included in the same cable?
It can be, and many installations do combine power and brake conductors. Keep the brake pair separately shielded from the encoder signals to avoid coupling.
Understanding the specification
The figures in the table above are not independent of one another. Read together they describe how this V90 Servo Motor Cable will behave in service, and where the practical limits sit once it is installed in equipment rather than tested on a bench.
- Compatibility (Siemens SINAMICS V90):
- Cross reference (6FX3002-5CK01-1XX0):
- Shielding (Overall braid): Shielding only works when it is terminated. A shield that stops short of the connector shell leaves the signal path exposed to whatever the cabinet is radiating.
- Brake pair (Optional):
- Flex rating (Drag-chain suitable): A flex rating is only meaningful with its test conditions. A figure quoted without a bend radius and travel distance cannot be compared against another supplier's number.
- Compliance (RoHS, REACH): Compliance covers the material declarations your quality system will ask for. The declarations are available for every part number we supply.
Selecting a servo motor cable
Servo cables fail mechanically far more often than electrically. The conductor fractures where the bend is tightest, and the fault appears as an intermittent alarm long before it becomes a hard failure — which is why these problems are so often misdiagnosed as drive faults.
Start with the movement, not the connector. Measure the actual bend radius your installation produces, because flex life falls non-linearly as radius reduces; halving the radius can cut expected life by an order of magnitude rather than by half.
Pair assignment is the second critical detail. A replacement cable that uses a different pair assignment, or that separates the members of a differential pair, produces signal skew the drive interprets as position error. This is the failure most often introduced by sourcing on price alone.
Include the brake pair in the same cable if that suits the routing, but keep it separately shielded from the encoder signals. Then verify shield bonding at both ends before commissioning; a shield bonded at one end only turns the pairs into an antenna.
Packaging, delivery and documentation
This item is made to order with a minimum order quantity of 5 pcs and a stated lead time of 3–5 working days. Orders ship on FOB, EXW, CIF or DDP terms as agreed at order confirmation, with real-time tracking provided once the shipment is booked.
Packaging is specified to survive international freight rather than to minimise volume. Connectors are supplied in anti-static packaging with pin protection where the contact geometry requires it; cable assemblies are coiled to a radius that respects the flex specification and secured so the assembly cannot move in transit. Both ends are labelled on multi-channel assemblies so a field replacement cannot be mis-wired.
Every shipment is accompanied by a test report covering continuity, dielectric strength, insulation resistance and any application-specific measurement performed. Where your quality system requires material declarations, batch traceability or joint sampling and sealing, confirm the requirement at the enquiry stage and we will build it into the order rather than adding it after production.
Further questions
Can I get a sample before committing to a production order?
Yes. Samples for engineering validation are dispatched within 24 hours for stocked items, and within the quoted production lead time for made-to-order assemblies. Every sample ships with its test report so that your validation is based on measured performance rather than on appearance.
What happens if the part does not fit the application?
Send us the mating half, a photograph or the equipment model and we will identify why. In most cases the answer is a different keying or coupling variant of the same family rather than a completely different product, and we would rather resolve it before you place a volume order than after.
Do you hold stock for repeat orders?
Stocked lines are held with safety quantity, and made-to-order tooling is retained so a repeat order does not repeat the tooling cost. For scheduled programmes we can agree a call-off arrangement that keeps material allocated against your forecast.
How this cable assembly is manufactured and tested
Cable stock is inspected on receipt for conductor stranding, shield coverage, jacket concentricity and print legibility, because these properties determine the electrical behaviour of the finished assembly far more than the connector does. Reel-level certificates are retained for traceability.
Assembly is carried out on calibrated equipment with the shield terminated to the connector shell around the full circumference. On assemblies with individually shielded pairs, each pair shield is terminated as well — this is the detail that separates a cable which holds a differential signal from one that works on a bench and drops frames in a cabinet. Pair lengths are matched where the assembly carries differential channels.
Testing covers continuity and short checking across every conductor, dielectric strength, and insulation resistance. High-speed and Camera Link assemblies are additionally verified with TDR impedance analysis, which confirms characteristic impedance along the length and locates any discontinuity introduced by the termination. Flex-rated constructions are qualified against the stated bend radius and travel distance rather than a generic figure.
Finished assemblies are coiled to a radius that respects the flex specification, labelled at both ends on multi-channel products, and packed so that the assembly cannot move in transit. The test report for the batch accompanies the shipment.
Warranty, returns and technical support
Cable assemblies are warranted against defects in materials and workmanship that appear under normal use for a period of 30 days from delivery, or for the period stated on the order confirmation if different. Where a verified defect is found, we will at our option repair, replace or refund the affected goods. The warranty does not cover failure arising from installation below the specified bend radius, use outside the published temperature or voltage ratings, or damage caused by pulling the assembly by its connector.
Returns require a return authorisation before shipment, and goods should be retained in their original condition pending inspection. Stocked items returned unused in original packaging may be accepted within 30 days subject to a restocking assessment; assemblies built to a customer drawing are not returnable unless defective.
Technical support is provided by the same engineers who handle the specification, not by a separate call centre. If a V90 Servo Motor Cable behaves unexpectedly in service, send us the installation detail — cable length, routing, environment and the symptom pattern — and we will work through the likely causes with you. Enquiries are answered within two hours during business days, and on-site technical support can be arranged for programmes where that is more practical than remote diagnosis.
Ordering checklist
To quote accurately and avoid a second iteration, we need the part number or the original manufacturer reference, the quantity required for validation and for production, the required delivery date, and the destination country so that the correct Incoterm can be applied. Where the item is a replacement for an obsolete part, a photograph of the existing connector and the equipment model will usually let us confirm the equivalent without a sample.
If your quality system requires material declarations, batch traceability, joint sampling and sealing, or a first-article inspection report, state that at the enquiry stage. These can all be accommodated, but retrofitting them into a production schedule costs more time than building them in from the start.
Why source this part from KINKUO
We manufacture rather than resell, which means the part you receive is built on our own calibrated equipment by the same team that engineers it. That removes the margin stacking of a trading chain and keeps lead times predictable. Established in 2010, we supply servo motor cables to customers across South China, East China, Japan, Europe and North America.
Related products
- V90 Servo Encoder Cable for SIEMENS (6FX3002-2CT20-1AD0)

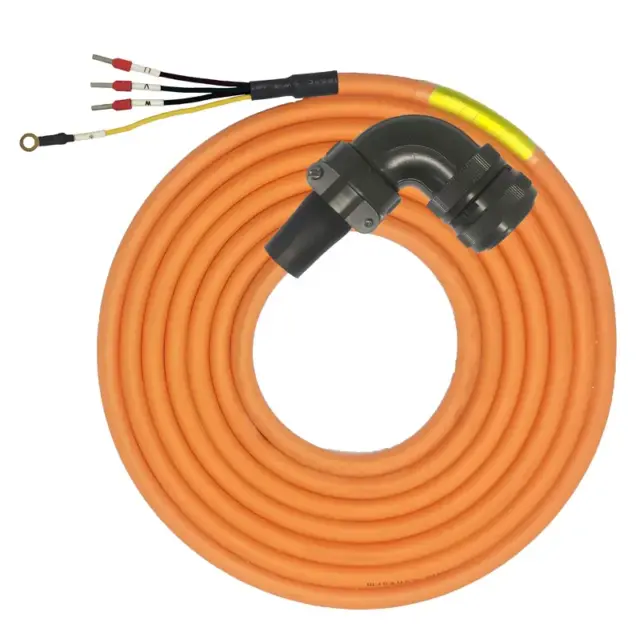

- A5/A6 Servo Motor Cable for Panasonic & Mitsubishi
