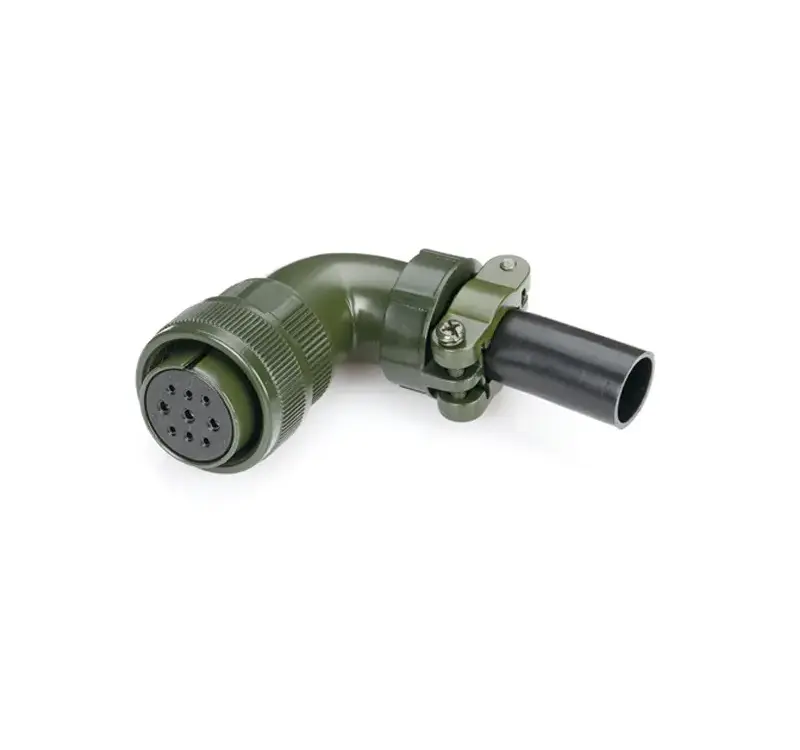

The MS3108A20-18S is part of the 5015 Series range and is supplied in stock from our factory in Dongguan. The contact system is built for repeated mating, and every unit is checked against the drawing before it is packed.
Specifying the MS3108A20-18S
Every unit is inspected before dispatch and ships with a test report, so incoming inspection becomes a document check rather than a re-test. Material compliance is documented against RoHS and REACH.
Key features
- Manufactured in house on calibrated equipment with in-process inspection at every station
- Contacts plated gold over a nickel barrier for stable, repeatable contact resistance
- Pin-out and keying verified against the drawing before packing
- Test report supplied with every shipment for incoming inspection
- Low minimum order quantity — single pieces available for validation
- Custom pin-outs, platings and shell options available on request
Technical specifications
| Contacts qty & material | ( 9POS ) & Copper Alloy |
|---|---|
| Shell | High strength aluminum alloy |
| Insulation Housing | High voltage,high temperature resistant synthetic insulator |
| Grommet and seal | Silicon rubber |
| Color | Passivation, Olive drab Zinc plating，Army Green |
| Electrical Characteristics | a) Contact Currect Rating: 15 Amp / 30 Amp |
| Waterproof Grade: | IP 67 |
| Environmental standards | RoHS Compliant |
| Part number | this component |
| Category | 5015 Series |
| Compliance | RoHS and REACH compliant materials |
Typical applications
Industrial automation and manipulators, servo motor and encoder systems, machine-tool equipment, automotive test and production lines, medical devices, and laboratory instrumentation.
Ordering information
- Part number: this component
- Availability: supplied from stock or made to order against your schedule
- Sample service: samples dispatched within 24 hours for stocked items
- Trade terms: FOB, EXW, CIF and DDP all supported
- Customisation: alternative pin-outs, lengths and materials engineered to your drawing
Send the specification to King@KinKuo.com and our engineering team will confirm feasibility, lead time and pricing.
Quality assurance
KINKUO operates an ISO 9001:2015 certified quality management system. Production runs through in-process inspection, and the in-house laboratory covers continuity, dielectric strength, insulation resistance and contact retention checks. Materials are RoHS and REACH compliant, and declarations are available on request.
Selecting the right 5015 Series
Termination method affects repeatability more than peak performance. Crimp joints are controlled by tooling and give consistent results at volume; solder joints depend on the operator and suit low volumes and field repair.
Where the part is mounted on a board, use locating posts or board locks so that cable pull is not carried by the solder. That single detail accounts for a large share of the failures we are asked to investigate.
Packaging and delivery
Packaging is specified to survive international freight rather than to minimise volume. Connectors are supplied in anti-static packaging with pin protection where the contact geometry requires it, and multi-channel items are labelled so that a field replacement cannot be mis-wired.
Every shipment is accompanied by a test report covering continuity, dielectric strength, insulation resistance and any application-specific measurement performed. Where your quality system requires material declarations, batch traceability or joint sampling and sealing, confirm the requirement at the enquiry stage and we will build it into the order.
Common questions
What happens if the part does not fit the application?
Send us the mating half or the equipment model and we will identify why. In most cases the answer is a different keying or coupling variant of the same family rather than a completely different product.
Do you hold stock for repeat orders?
Stocked lines are held with safety quantity, and tooling is retained so a repeat order does not repeat the tooling cost. Scheduled programmes can be supported on a call-off basis.
Which trade terms do you support?
FOB, EXW, CIF and DDP. Tell us the destination and required date and we will quote the appropriate term.
Technical documents
The original drawing and datasheet for this part are available to download:
Why source this part from KINKUO
We manufacture rather than resell, which means the part you receive is built on our own calibrated equipment by the same team that engineers it. That removes the margin stacking of a trading chain and keeps lead times predictable. Established in 2010, we supply 5015 series to customers across South China, East China, Japan, Europe and North America.
Contact our engineering team for a part-number cross reference, or browse the full product range.
Every ms3108a20-18s we ship is inspected against the drawing before packing.
