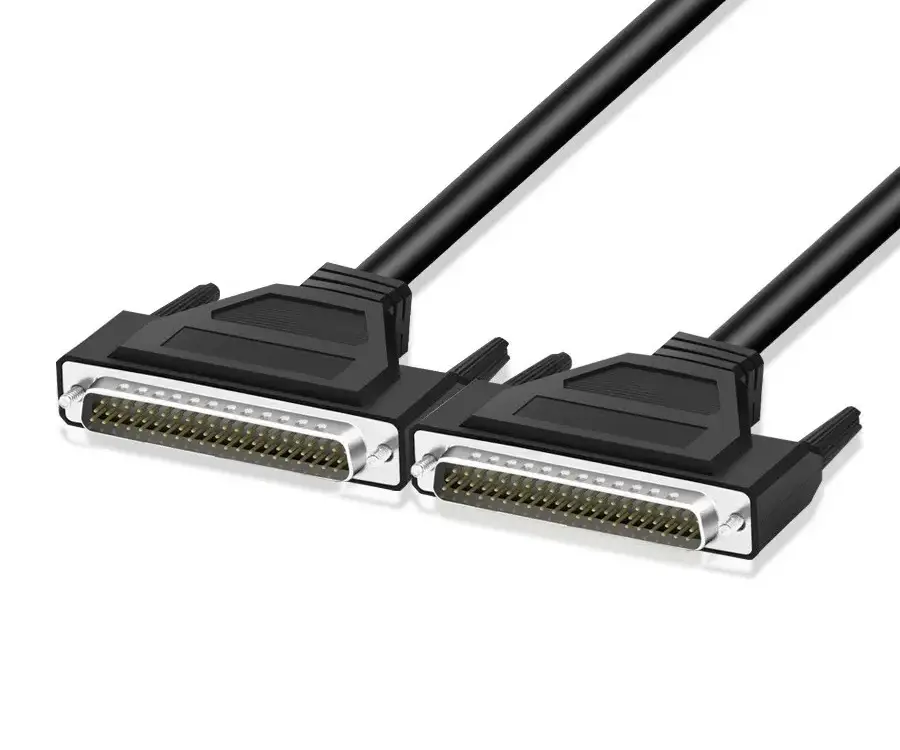

The HDB 62Pin Male Cable is part of the 15P, 26P, 44P, 62Pin range and is supplied in stock from our factory in Dongguan. Conductor stranding, shield coverage and jacket compound are all selected for the duty the cable has to survive, not simply for the lowest material cost.
Specifying the HDB 62Pin Male Cable
Every unit is inspected before dispatch and ships with a test report, so incoming inspection becomes a document check rather than a re-test. Material compliance is documented against RoHS and REACH.
Key features
- Shield terminated to the connector shell around the full circumference
- Double-shielded construction for stable differential signalling
- Custom lengths, pin assignments and hood types built to your drawing
- Strain relief designed to keep mechanical load out of the termination
- Test report with continuity, dielectric strength and insulation resistance results
- Flex-rated constructions available for drag-chain applications
Technical specifications
| Connector-1 | HDB 62Pin Male Solder Type Connector 4-40# Screw |
|---|---|
| Connector-2 | HDB 62Pin Male Solder Type Connector 4-40# Screw |
| Wire SPEC | UL20276 28AWG*31P +AL.MYLAR+Drain+Braid PVC Jacket OD=10.0mm Color: Black |
| Length | 0.5m, 1.0m, 2m, 3m, 5m （Customizable） |
| Color | Black （Customizable） |
| Electrical Characteristics | a) Current rating: 0.5A max |
| Application | Automation Equipment |
| Environmental standards | RoHS Compliant |
| Part number | FC-HDB062MM-XXA |
| Category | 15P, 26P, 44P, 62Pin |
| Compliance | RoHS and REACH compliant materials |
Typical applications
Vision systems and camera links, servo drive and encoder runs, machine-tool control panels, test benches, and any installation where a shielded multi-conductor assembly has to survive continuous flexing or a hostile environment.
Ordering information
- Part number: FC-HDB062MM-XXA
- Availability: supplied from stock or made to order against your schedule
- Sample service: samples dispatched within 24 hours for stocked items
- Trade terms: FOB, EXW, CIF and DDP all supported
- Customisation: alternative pin-outs, lengths and materials engineered to your drawing
Send the specification to King@KinKuo.com and our engineering team will confirm feasibility, lead time and pricing.
Quality assurance
KINKUO operates an ISO 9001:2015 certified quality management system. Cable stock is inspected on receipt for stranding, shield coverage and jacket concentricity; finished assemblies are tested for continuity, dielectric strength and insulation resistance, and high-speed types are verified with TDR impedance analysis. Materials are RoHS and REACH compliant.
Selecting the right 15P, 26P, 44P, 62Pin
Shielding only works when it is terminated. A foil wrap that stops at the cable jacket, or a drain wire that runs alongside the conductors instead of bonding to the shell, leaves the signal path exposed to whatever the cabinet is radiating.
On multi-pair assemblies, ask for matched pair lengths. Uncontrolled length differences translate directly into skew, which shows up as a link that trains on one machine and not on another.
Packaging and delivery
Finished assemblies are coiled to a radius that respects the flex specification and secured so the assembly cannot move in transit. Both ends are labelled on multi-channel products, and the test report for the batch accompanies the shipment.
Where a programme runs to a schedule rather than a single order, call-off arrangements keep material allocated against your forecast and reduce the risk of an unplanned gap in supply. Tell us the annual volume when you enquire and we will confirm what can be reserved.
Common questions
Why does my camera link drop frames intermittently?
In most cases the shield is not terminated to the connector shell, or the pairs are not impedance-controlled through the termination. Check shield continuity end to end before replacing the camera.
What is the maximum length for a shielded assembly?
It depends on the interface and the environment. Tell us the protocol and the noise sources nearby and we will advise a practical limit rather than the theoretical maximum.
Can I get matched pair lengths?
Yes, and we recommend it for any multi-pair assembly carrying differential signals. Uncontrolled lengths produce skew.
Technical documents
The original drawing and datasheet for this part are available to download:
Why source this part from KINKUO
We manufacture rather than resell, which means the part you receive is built on our own calibrated equipment by the same team that engineers it. That removes the margin stacking of a trading chain and keeps lead times predictable. Established in 2010, we supply 15p, 26p, 44p, 62pin to customers across South China, East China, Japan, Europe and North America.
Contact our engineering team for a part-number cross reference, or browse the full product range.
